Product Details
Product Overview

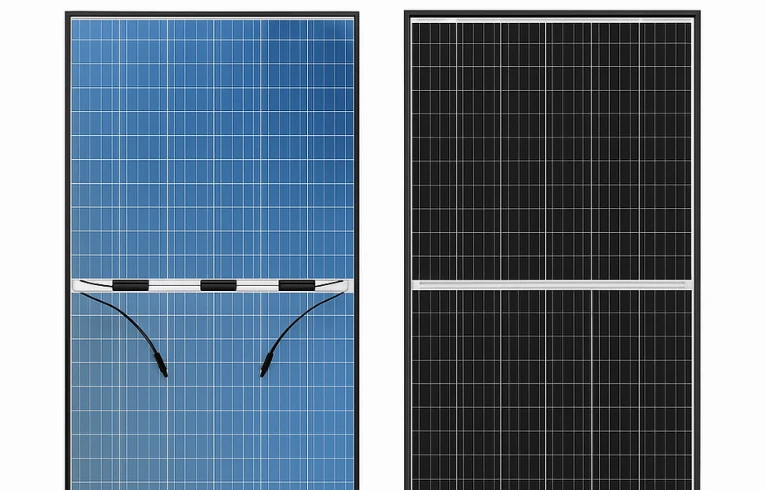

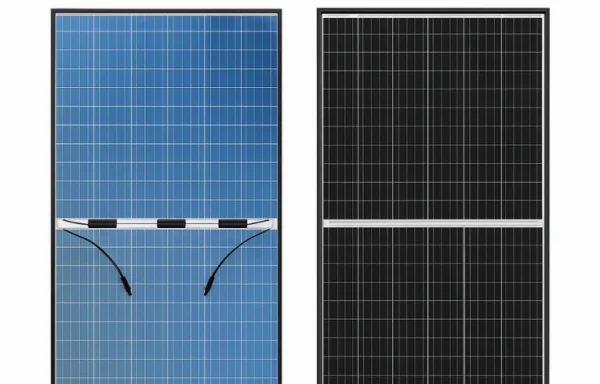

The 540W Bi-Facial Mono PERC DCR Solar Panel is engineered for maximum efficiency and long-term reliability in residential, commercial, and industrial solar projects. Built with Mono PERC (Passivated Emitter and Rear Cell) technology, the panel captures sunlight from both the front and rear sides, providing up to 10–20% more generation compared to standard modules. Being DCR (Domestic Content Requirement) compliant, it is fully eligible for government subsidies under the PM Surya Ghar Muft Bijli Yojana, making it an ideal choice for rooftop and utility-scale projects across India.
Key Features
- High Power Rating – 540W per module delivers more output with fewer panels.
- Bi-Facial Design – Dual-side generation enhances energy yield, especially in reflective environments.
- Mono PERC Technology – Superior efficiency, excellent low-light performance, and higher energy harvest.
- DCR Compliant – Eligible for central and state subsidy programs in India.
- Rugged Durability – Built with tempered glass, anodized aluminum frame, and IP68 junction box.
- Long-Term Reliability – PID resistant, certified for performance in extreme weather conditions.
Technical Specifications
Parameter | Details |
Power Output | 540 W |
Cell Type | Mono PERC (Bi-facial) |
Module Type | DCR Compliant |
Efficiency | ~20–21% |
Glass | 2 mm Dual Glass, AR Coated |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68 rated, 3 Bypass Diodes |
Operating Temp. | -40°C to +85°C |
Warranty | 12 years product warranty, 25–30 years performance warranty |
Benefits
- Government Subsidy Eligible: DCR compliance ensures financial benefits.
- Higher Energy Generation: Dual-side light absorption increases yield.
- Space-Saving: High wattage reduces the number of panels needed.
- Low Maintenance: Designed for long life and durability.
- Eco-Friendly Investment: Reduces carbon footprint with renewable energy.
